CB-HFT (YG)

Heat Shrink Tubing

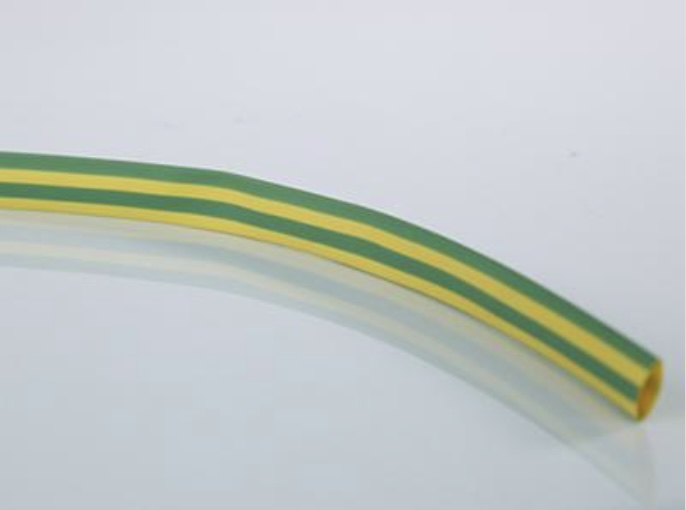

The CB-HFT (YG) is a yellow-and-green striped, halogen-free heat shrink tubing designed for professional electrical insulation, identification, and grounding applications. It provides excellent flame retardance, electrical insulation, and mechanical protection, ensuring long-term performance and safety across industrial and commercial environments.

CB-HFT (YG)
CB-HFT (YG) - Image 2

Key Features & Benefits

  • Color Coding: The yellow/green stripe clearly identifies grounding and protective conductors.
  • Halogen-Free & Flame-Retardant: Designed for safety and compliance with low-smoke, non-toxic requirements.
  • Reliable Shrink Performance: Standard 2:1 shrink ratio fits a wide range of wire sizes and connectors.
  • Excellent Electrical Properties: Provides strong dielectric strength and insulation resistance.
  • Durable & Flexible: Maintains integrity under mechanical stress, vibration, and thermal cycling.

Material & Options

  • Halogen-free cross-linked polyolefin construction
  • Yellow/green striped finish for easy recognition
  • Operating temperature: -55 °C to +125 °C
  • Available in a wide range of diameters and wall thicknesses
  • Supplied in reels, cut lengths, or custom packaging

Why Choose CB-HFT (YG)?

  • Combines visual clarity with insulation performance
  • Ensures safety compliance in modern electrical installations
  • Easy to apply, shrink, and integrate into harnesses
  • Cost-effective and durable for long-term use

Ordering & Availability

  • Available from stock or made to order in custom sizes
  • Supplied in bulk reels or pre-cut lengths
  • Datasheets, certifications, and compliance information available upon request
  • Available in different colors

Looking for a safe, halogen-free, and easy-to-identify insulation solution?

Contact Do-X Logistics today to request a quote for CB-HFT (YG) Heat Shrink Tubing, engineered for durability, clarity, and reliable electrical performance.

Interested in our products?

Leave your details, and we'll get back to you:

Download Datasheet
# P/N Product description NOMINAL SIZE (mm) Package FT/Roll Manufacturer
1 I-CB-HFT-2.0 CB-HFT-2.0 (656FT/Roll) φ2.0 656 KTG
2 I-CB-HFT-2.5 CB-HFT-2.5 (656FT/Roll) φ2.5 656 KTG
3 I-CB-HFT-3.0 CB-HFT-3.0 (656FT/Roll) φ3.0 656 KTG
4 I-CB-HFT-3.5 CB-HFT-3.5 (656FT/Roll) φ3.5 656 KTG
5 I-CB-HFT-4.0 CB-HFT-4.0 (656FT/Roll) φ4.0 656 KTG
6 I-CB-HFT-4.5 CB-HFT-4.5 (328FT/Roll) φ4.5 328 KTG
7 I-CB-HFT-5.0 CB-HFT-5.0 (328FT/Roll) φ5.0 328 KTG
8 I-CB-HFT-6.0 CB-HFT-6.0 (328FT/Roll) φ6.0 328 KTG
9 I-CB-HFT-6.5 CB-HFT-6.5 (328FT/Roll) φ6.5 328 KTG
10 I-CB-HFT-7.0 CB-HFT-7.0 (328FT/Roll) φ7.0 328 KTG
11 I-CB-HFT-8.0 CB-HFT-8.0 (328FT/Roll) φ8.0 328 KTG
12 I-CB-HFT-9.0 CB-HFT-9.0 (328FT/Roll) φ9.0 328 KTG
13 I-CB-HFT-10 CB-HFT-10 (328FT/Roll) φ10 328 KTG
14 I-CB-HFT-11 CB-HFT-11 (328FT/Roll) φ11 328 KTG
15 I-CB-HFT-12 CB-HFT-12 (328FT/Roll) φ12 328 KTG
16 I-CB-HFT-13 CB-HFT-13 (328FT/Roll) φ13 328 KTG
17 I-CB-HFT-14 CB-HFT-14 (328FT/Roll) φ14 328 KTG
18 I-CB-HFT-15 CB-HFT-15 (328FT/Roll) φ15 328 KTG
19 I-CB-HFT-16 CB-HFT-16 (328FT/Roll) φ16 328 KTG
20 I-CB-HFT-17 CB-HFT-17 (328FT/Roll) φ17 328 KTG
21 I-CB-HFT-18 CB-HFT-18 (328FT/Roll) φ18 328 KTG
22 I-CB-HFT-20 CB-HFT-20 (328FT/Roll) φ20 328 KTG
23 I-CB-HFT-22 CB-HFT-22 (328FT/Roll) φ22 328 KTG
24 I-CB-HFT-25 CB-HFT-25 (164FT/Roll) φ25 164 KTG
25 I-CB-HFT-28 CB-HFT-28 (164FT/Roll) φ28 164 KTG
26 I-CB-HFT-30 CB-HFT-30 (164FT/Roll) φ30 164 KTG
27 I-CB-HFT-35 CB-HFT-35 (82FT/Roll) φ35 82 KTG
28 I-CB-HFT-40 CB-HFT-40 (82FT/Roll) φ40 82 KTG
29 I-CB-HFT-45 CB-HFT-45 (82FT/Roll) φ45 82 KTG
30 I-CB-HFT-50 CB-HFT-50 (82FT/Roll) φ50 82 KTG
31 I-CB-HFT-60 CB-HFT-60 (82FT/Roll) φ60 82 KTG
32 I-CB-HFT-70 CB-HFT-70 (82FT/Roll) φ70 82 KTG
33 I-CB-HFT-80 CB-HFT-80 (82FT/Roll) φ80 82 KTG
34 I-CB-HFT-90 CB-HFT-90 (82FT/Roll) φ90 82 KTG
35 I-CB-HFT-100 CB-HFT-100 (82FT/Roll) φ100 82 KTG
