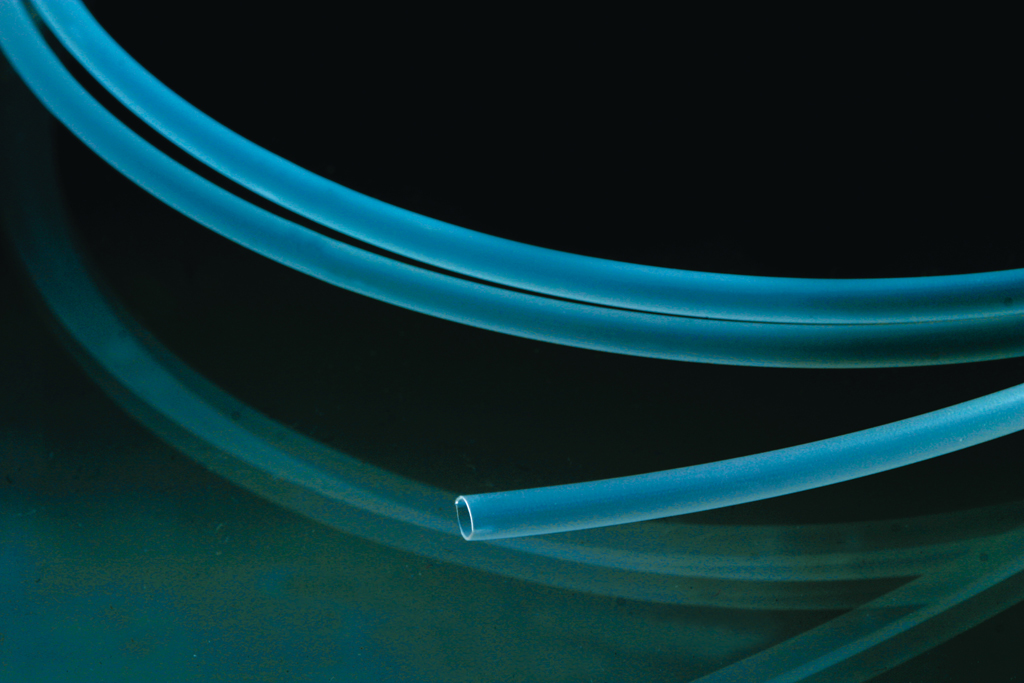

CB-HFT(3X)

Heat Shrink Tubing

The CB-HFT(3X) is a glueless, halogen-free heat shrink tubing with a 3:1 shrink ratio, engineered for reliable insulation and protection across a wide range of electrical and industrial applications. Its high shrink ratio allows it to easily fit over connectors, splices, and irregular shapes, ensuring a secure and professional finish.

CB-HFT(3X)

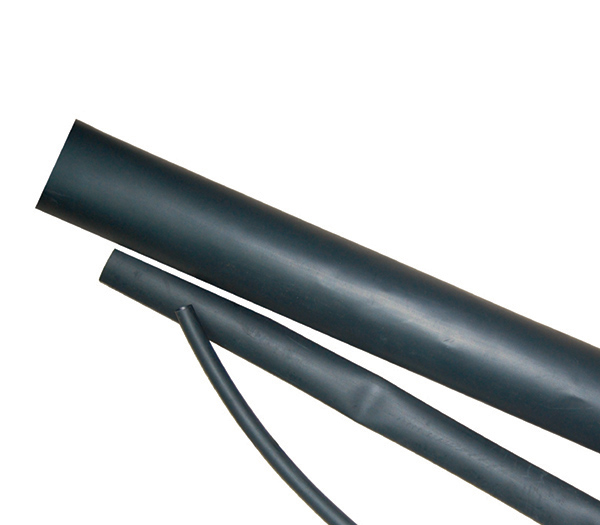

CB-HFT(3X) - Image 2

Key Features & Benefits

  • 3:1 Shrink Ratio: Shrinks to one-third of its original diameter for a tight, adaptable fit.
  • Glueless / Non-Adhesive Design: Simplifies installation and rework without adhesive residue.
  • Halogen-Free & Flame-Retardant: Safe for environments that require low smoke and toxicity levels.
  • Wide Operating Temperature: Performs reliably from -55 °C to +125 °C.
  • Strong Insulation & Durability: Provides consistent dielectric strength and long-term mechanical protection.

Material & Options

  • Cross-linked polyolefin construction
  • Available in multiple diameters and wall thicknesses
  • Supplied in reels, cut lengths, or pre-cut kits
  • Standard black color, with optional custom colors available

Why Choose CB-HFT(3X)?

  • Flexible and easy to apply, even over complex cable shapes
  • Excellent performance without the mess of adhesive lining
  • Meets modern safety and environmental requirements
  • Cost-effective, professional insulation solution for diverse uses

Ordering & Availability

  • Available in a full range of diameters and lengths
  • Stock and custom sizes supported
  • Datasheets, compliance documents, and performance data available upon request
  • Available in different colors

Looking for a reliable, high-shrink, halogen-free tubing for your electrical systems?

Contact Do-X Logistics today to request a quote for CB-HFT(3X) Heat Shrink Tubing, designed for lasting insulation and easy installation.

Interested in our products?

Leave your details, and we'll get back to you:

Download Datasheet
# P/N Product description NOMINAL SIZE (mm) Package FT/Roll Manufacturer
1 I-CB-HFT-3X-1.5 CB-HFT-3X-1.5 (656FT/Roll) φ1.5 656 KTG
2 I-CB-HFT-3X-3.0 CB-HFT-3X-3.0 (656FT/Roll) φ3.0 656 KTG
3 I-CB-HFT-3X-4.5 CB-HFT-3X-4.5 (328FT/Roll) φ4.5 328 KTG
4 I-CB-HFT-3X-6.0 CB-HFT-3X-6.0 (328FT/Roll) φ6.0 328 KTG
5 I-CB-HFT-3X-9.0 CB-HFT-3X-9.0 (328FT/Roll) φ9.0 328 KTG
6 I-CB-HFT-3X-12 CB-HFT-3X-12 (328FT/Roll) φ12 328 KTG
7 I-CB-HFT-3X-15 CB-HFT-3X-15 (328FT/Roll) φ15 328 KTG
8 I-CB-HFT-3X-18 CB-HFT-3X-18 (164FT/Roll) φ18 164 KTG
9 I-CB-HFT-3X-24 CB-HFT-3X-24 (164FT/Roll) φ24 164 KTG
10 I-CB-HFT-3X-30 CB-HFT-3X-30 (164FT/Roll) φ30 164 KTG
11 I-CB-HFT-3X-39 CB-HFT-3X-39 (164FT/Roll) φ39 164 KTG
