CB Carbon Sleeving

The CB Carbon Sleeving is a reinforced, carbon-infused braided sleeve designed to protect cables while providing conductive and antistatic properties. Its woven structure allows for expansion over bundles, while the carbon elements help dissipate static and offer a sleek, performance-grade aesthetic.

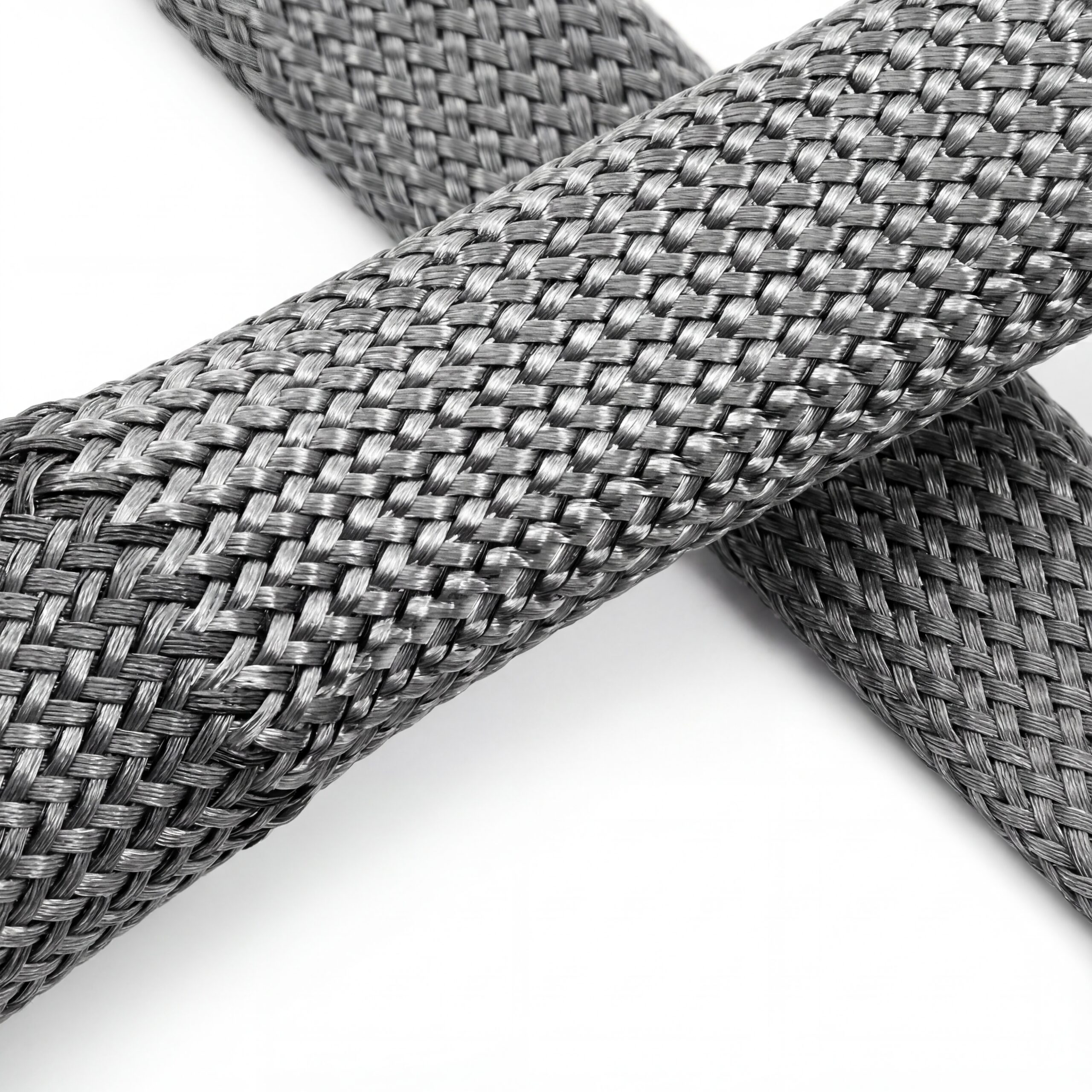

CB Carbon Sleeving
CB Carbon Sleeving - Image 2

Key Features & Benefits

  • Conductive / Static Dissipation: Carbon-infused yarns help reduce static buildup and offer some level of conductivity.
  • Abrasion Resistance: Robust braided construction protects wires from chafing, cuts, and mechanical wear.
  • Flexible Expansion: Offers expandability for diverse wire bundle sizes while maintaining containment.
  • Sleek Appearance: Adds a premium look to cable assemblies with a “high-tech” finish.
  • Install-Friendly: Slip-over or wrap-around designs allow easy retrofitting.

Material & Configuration Options

  • Available in multiple diameters to suit different bundle sizes
  • Carbon-infused vs partially carbon / hybrid braid designs
  • Split or made-to-wrap versions for retrofit install
  • Custom lengths, colors, and braid densities

Why Choose CB Carbon Sleeving?

  • Combines mechanical protection with static control
  • Improves both the function and look of cable builds
  • Customizable to your specific routing and shielding needs
  • Compatible with a wide range of cable types and uses

Ordering & Availability

  • Supplied in spools or bulk braid lengths
  • Custom cut-to-length and pre-assembled bundles available
  • Technical support, datasheets, and installation guidelines provided

Looking to add protection, style, and static control to your wiring assemblies?

Contact Do-X Logistics today to quote CB Carbon Sleeving matched to your cable dimensions and conductive needs.

Interested in our products?

Leave your details, and we'll get back to you:

Download Datasheet
# P/N Product description Flat Width (inch/mm) Package FT/Spool Manufacturer
1 I-CB-CARBON-1/8 I-CB-CARBON-1/8″ 1/8″ / 3 1640 JDD Tech
2 I-CB-CARBON-1/4 I-CB-CARBON-1/4″ 1/4″ / 6 984 JDD Tech
3 I-CB-CARBON-5/16 I-CB-CARBON-5/16″ 5/16″ / 8 656 JDD Tech
4 I-CB-CARBON-3/8 I-CB-CARBON-3/8″ 3/8″ / 10 656 JDD Tech
5 I-CB-CARBON-1/2 I-CB-CARBON-1/2″ 1/2″ / 12 656 JDD Tech
6 I-CB-CARBON-5/8 I-CB-CARBON-5/8″ 5/8″ / 15 656 JDD Tech
7 I-CB-CARBON-13/16 I-CB-CARBON-13/16″ 13/16″ / 20 492 JDD Tech
8 I-CB-CARBON-1 I-CB-CARBON-1″ 1″ / 25 328 JDD Tech
9 I-CB-CARBON-1-3/16 I-CB-CARBON-1-3/16″ 1-3/16″/30 328 JDD Tech
10 I-CB-CARBON-1-9/16 I-CB-CARBON-1-9/16″ 1-9/16″/40 328 JDD Tech
11 I-CB-CARBON-1-31/32 I-CB-CARBON-1-31/32″ 1-31/32″/50 328 JDD Tech
