LGM81044/9

Military Hook-Up Wire

The LGM81044/9 Military Hook-Up Wire is engineered for demanding aerospace, defense, and high-reliability applications. Rated for 30/1000 V and operating across -65 °C to 150 °C, this wire uses modified radiation cross-linked PVDF insulation to deliver excellent mechanical strength, chemical resistance, and flame performance.

Designed to comply with MIL-DTL-81044 standards, it is widely used in airframe wiring, avionics systems, and rugged electronic modules that require consistent performance under severe environmental stress and chemical exposure.

LGM81044/9

Key Features & Benefits

  • High Voltage Rating: 30/1000 V for demanding electrical environments.
  • Temperature Range: Effective performance from -65 °C to 150 °C.
  • Robust Construction: Tin-plated copper conductor ensures reliable conductivity and corrosion resistance.
  • Modified PVDF Insulation: Cross-linked insulation for superior durability, flame resistance, and chemical stability.
  • Lightweight Design: Ideal for weight-sensitive aerospace and defense systems.
  • Enhanced Chemical & Flame Resilience: Withstands exposure to cleaning agents, fuels, oils, and harsh chemicals.

Applications

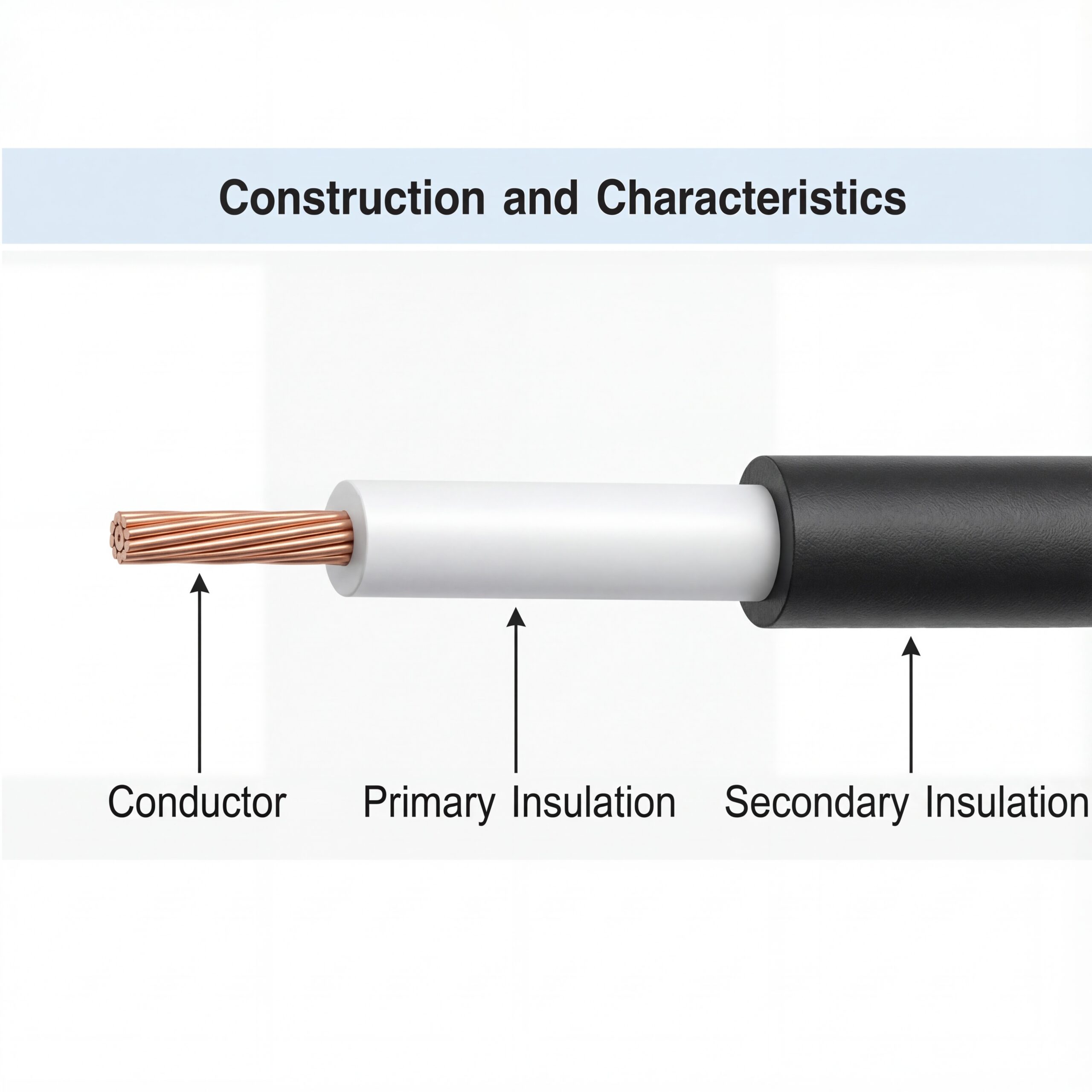

Technical Specifications

  • Specification: MIL-DTL-81044 / LGM81044/9
  • Conductor: Tin-plated copper, stranded
  • Insulation: Modified radiation cross-linked PVDF
  • Temperature Rating: -65 °C to 150 °C
  • Voltage Rating: 30/1000 V
  • Available Gauges: Multiple AWG sizes (e.g. 20, 22, 24, etc.)
  • Performance: Strong resistance to flame, abrasion, and chemical exposure

Why Choose LGM81044/9?

  • MIL-Spec certified for use in aerospace and defense systems
  • Durable performance even under extreme thermal and chemical conditions
  • Lightweight construction reduces overall mass in critical systems
  • Engineered for reliability in mission-critical wiring applications

Ordering & Availability

  • Available in spools, reels, or cut-to-length formats
  • Offered in standard wire colors or with custom striping for circuit identification
  • Comes with full certifications, test data, and lot traceability
  • Custom optimization is available for special gauge or insulation requirements

Need a rugged, high-voltage MIL-Spec wire for your aerospace or defense applications?

Contact our team now to request a quote for LGM81044/9 Military Hook-Up Wire and ensure your design meets strict performance, reliability, and safety requirements.

Interested in our products?

Leave your details, and we'll get back to you:

Download Datasheet
