LGM81044/12

Military Hook-Up Wire

The LGM81044/12 Military Hook-Up Wire is built for demanding aerospace, defense, and high-reliability electronic applications. Rated for 600 V and a temperature range of -65 °C to 150 °C, it features a modified radiation cross-linked PVDF insulation that ensures excellent mechanical strength, flame resistance, and chemical durability.

This wire meets MIL-DTL-81044 specifications and is commonly used in airframe wiring, avionics systems, and military electronics where consistent performance under vibration, thermal cycling, and exposure to harsh chemicals is critical.

LGM81044/12

Key Features & Benefits

  • High Voltage Rating: 600 V for safe operation in aerospace and defense environments.
  • Wide Temperature Range: Operates reliably from -65 °C to 150 °C.
  • Durable Construction: Tin-coated copper conductor offers excellent corrosion resistance and flexibility.
  • Cross-Linked PVDF Insulation: Provides superior flame resistance, mechanical strength, and chemical stability.
  • Lightweight Design: Ideal for aerospace applications where weight reduction is crucial.
  • Exceptional Resistance: Performs under exposure to fuels, oils, lubricants, and cleaning

Applications

Technical Specifications

  • Specification: MIL-DTL-81044 / LGM81044/12

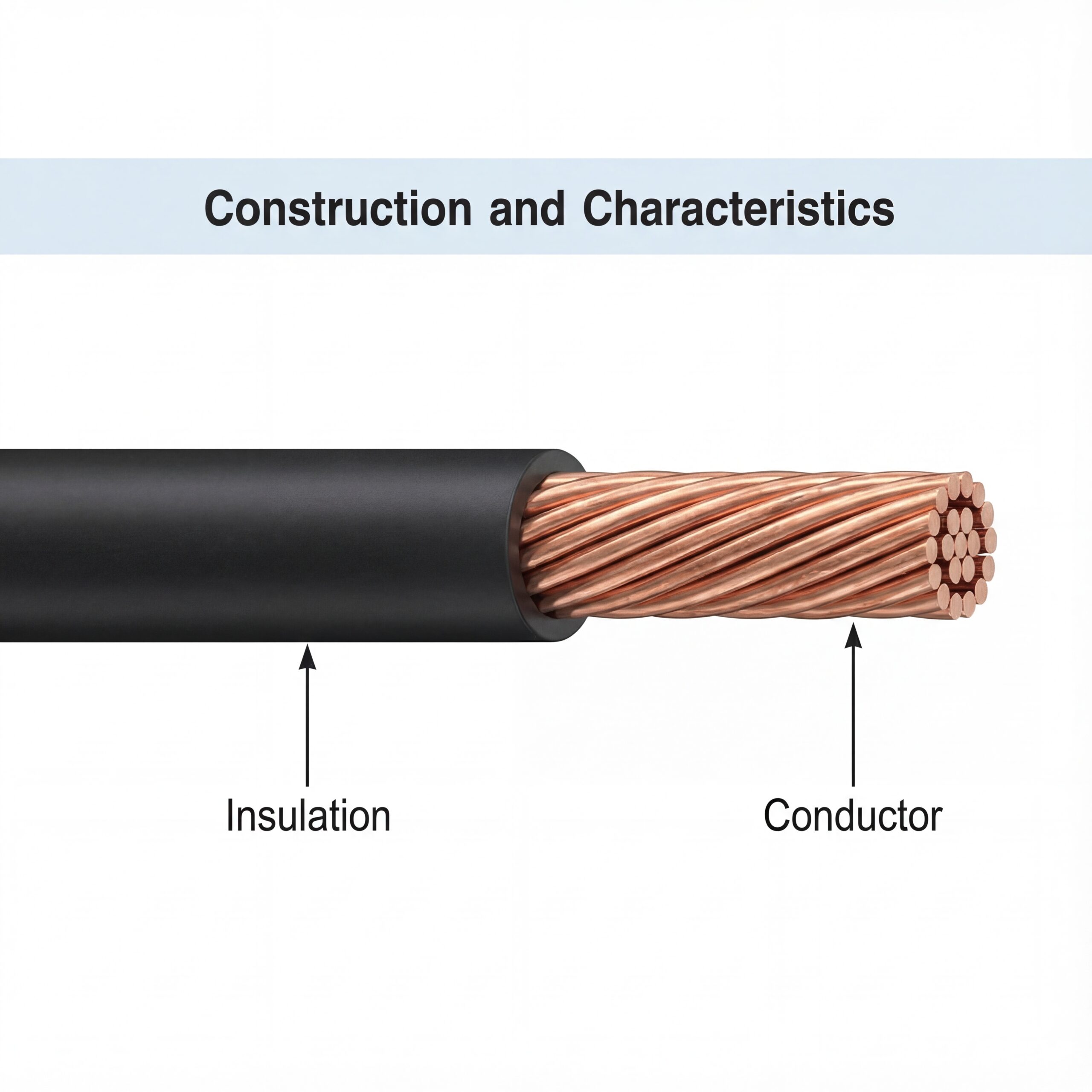

  • Conductor: Tin-coated copper, stranded
  • Insulation: Modified radiation cross-linked PVDF
  • Temperature Rating: -65 °C to 150 °C
  • Voltage Rating: 600 V
  • Available Gauges: Multiple AWG sizes (e.g., 12, 14, 16, 18, 20)
  • Performance: Excellent resistance to flame, chemicals, and mechanical stress

Why Choose LGM81044/12?

  • Certified to MIL-Spec standards for defense and aerospace systems.
  • Withstands thermal, mechanical, and chemical challenges in harsh conditions.
  • Lightweight construction minimizes overall system mass.
  • Proven performance for mission-critical applications requiring durability and stability.

Ordering & Availability

  • Available on spools, reels, or cut-to-length orders.
  • Offered in standard colors or custom striping options for circuit identification.
  • Includes full certifications, test data, and lot traceability.
  • Custom orders accepted for unique gauges, insulation types, or configurations.
