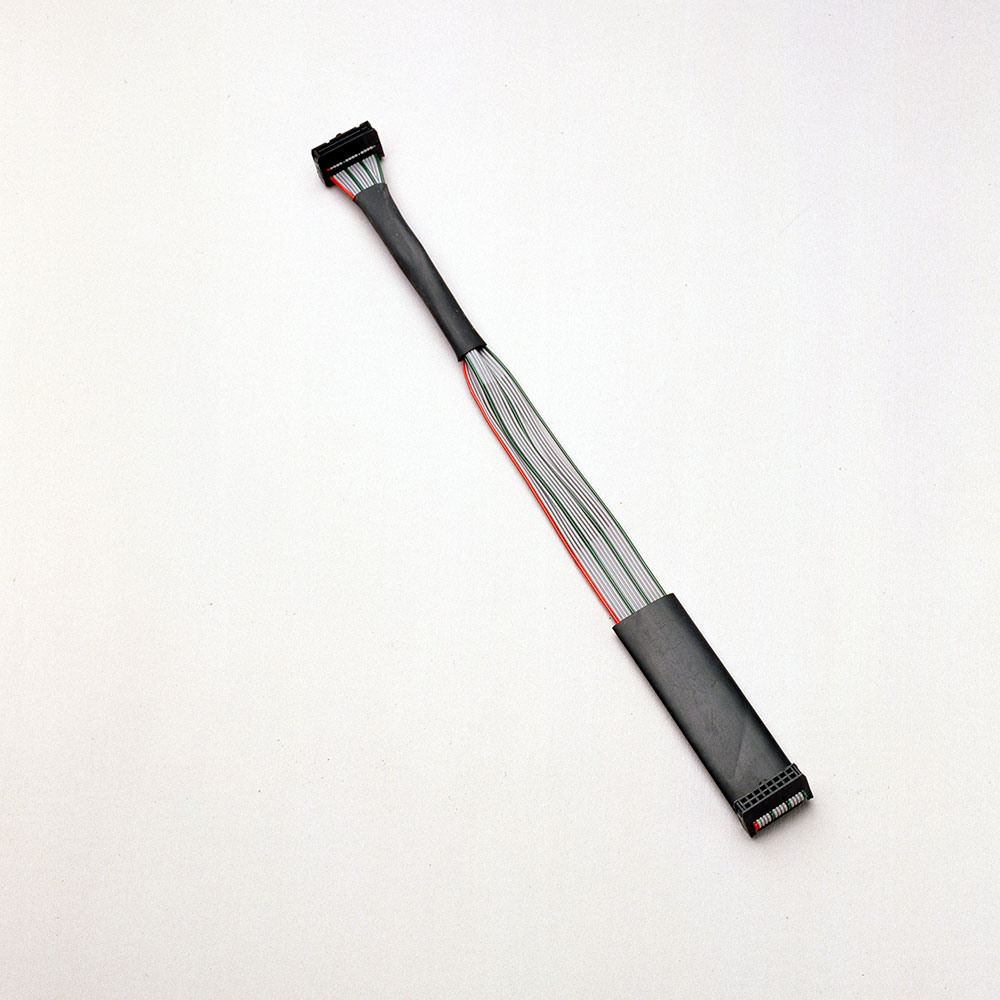

GSHS-3625WS

Heat Shrink Tubing

The GSHS-3625WS is a dual-wall, flame-retardant heat shrink tubing designed to provide reliable electrical insulation and environmental sealing. Featuring a 3:1 shrink ratio and an inner adhesive lining, it delivers superior protection against moisture, mechanical wear, and contaminants. Ideal for demanding applications across aerospace, automotive, and industrial sectors, this tubing ensures long-lasting durability and professional-grade performance.

Standards

  • UL 224
  • MIL-DTL-23053/4D standards
  • QPL approved
GSHS-3625WS

Key Features & Benefits

  • 3:1 Shrink Ratio: Provides a secure, uniform fit for wires, splices, and connectors.
  • Dual-Wall Construction: Adhesive-lined inner layer creates a watertight seal when shrunk.
  • Flame-Retardant Polyolefin: Meets safety standards for high-performance insulation.
  • Temperature Range: Performs reliably from -55 °C to +125 °C.
  • Excellent Electrical & Mechanical Strength: Offers high dielectric protection and abrasion resistance.
  • Versatile Application: Suitable for sealing, bundling, and insulating components in challenging environments.

Material & Options

  • Material: Cross-linked polyolefin, dual-wall (adhesive-lined interior)
  • Shrink Ratio: 3:1
  • Operating Temperature: -55 °C to +125 °C
  • Colors: Standard black; custom colors available on request
  • Packaging: Available in reels, spools, or pre-cut lengths
  • Sizes: Multiple diameters for a variety of wire and bundle configurations

Why Choose GSHS-3625WS?

The GSHS-3625WS Heat Shrink Tubing combines high shrink ratio versatility with durable insulation and sealing properties. Its dual-wall adhesive lining ensures complete environmental protection, while the flame-retardant outer layer maintains performance in critical applications.

Ordering & Availability

  • Available in multiple sizes and lengths
  • Supplied in reels, sticks, or pre-cut sections
  • Technical datasheets and certifications available upon request
  • OEM and bulk order options supported

Looking for dependable, dual-wall heat shrink tubing with superior sealing and insulation performance?

Contact Do-X Logistics today to request a quote for GSHS-3625WS Heat Shrink Tubing, built for long-term reliability in the most demanding environments.

Interested in our products?

Leave your details, and we'll get back to you:

Download Datasheet

Dual Wall Heat Shrinkable Semi-Rigid Polyolefin (3:1 Shrinkage, 600V, 110℃)

# P/N Product description Package  PSC unit Manufacturer
1 I-M23053/4-1-3.2 GSHS-3625WS – 1/8″ 4FT/PSC LS Cables & Systems
2 I-M23053/4-1-4.8 GSHS-3625WS – 3/16″ 4FT/PSC LS Cables & Systems
3 I-M23053/4-1-6.4 GSHS-3625WS – 1/4″ 4FT/PSC LS Cables & Systems
4 I-M23053/4-1-9.5 GSHS-3625WS – 3/8″ 4FT/PSC LS Cables & Systems
5 I-M23053/4-1-12.7 GSHS-3625WS – 1/2″ 4FT/PSC LS Cables & Systems
6 I-M23053/4-1-19.1 GSHS-3625WS – 3/4″ 4FT/PSC LS Cables & Systems
7 I-M23053/4-1-25.4 GSHS-3625WS – 1″ 4FT/PSC LS Cables & Systems
