GSHS-1635F

Heat Shrink Tubing

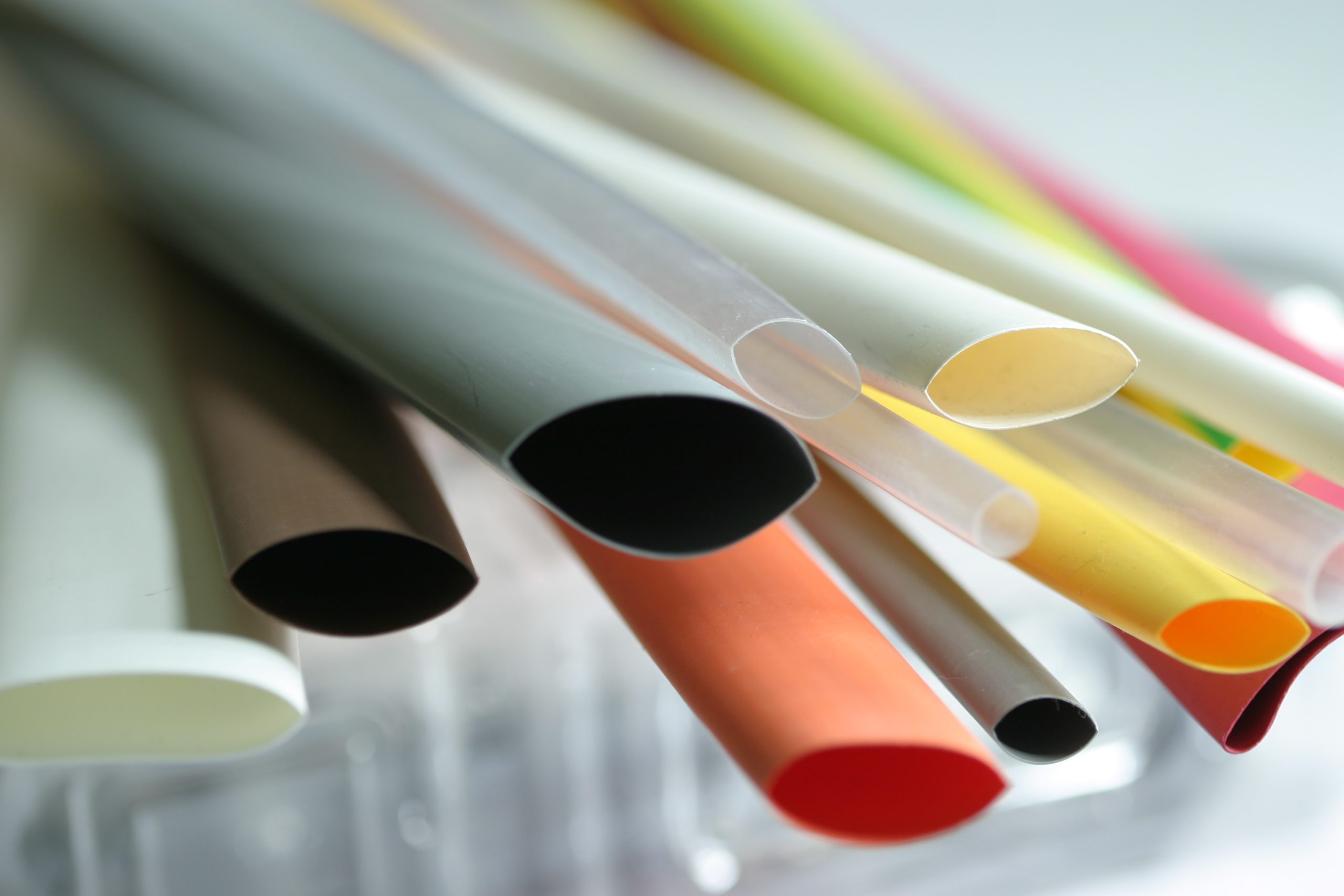

The GSHS-1635F is a flexible, flame-retardant polyolefin heat shrink tubing engineered to deliver reliable insulation, protection, and mechanical strength for a wide range of electrical and industrial applications. With a 2:1 shrink ratio and a temperature range of -55 °C to +135 °C, this tubing ensures dependable performance for wire harnesses, terminals, and cable assemblies exposed to demanding environments.

Standards

  • UL 224
  • CSA C22.2 NO.198.1-M1986
  • SAE AMS-DTL-23053/5 standards
  • QPL approved
GSHS-1635F

Key Features & Benefits

  • 2:1 Shrink Ratio: Provides a secure fit over wires, connectors, and components.
  • Flame-Retardant Material: Meets UL VW-1 standards for fire safety and electrical insulation.
  • Durable Protection: Offers excellent abrasion and mechanical resistance.
  • Wide Temperature Range: Performs reliably from -55 °C to +135 °C.
  • Electrical Safety: High dielectric strength and volume resistivity for enhanced cable insulation.
  • Multiple Color Options: Available in black, white, red, blue, and clear for easy identification and organization.

Material & Options

  • Material: Cross-linked, flame-retardant polyolefin
  • Shrink Ratio: 2:1
  • Operating Temperature: -55 °C to +135 °C
  • Standard Colors: Black, white, red, blue, clear (custom colors available)
  • Packaging: Supplied in reels, spools, or pre-cut lengths
  • Sizes: Multiple inner diameters to accommodate various wire and cable bundles

Why Choose GSHS-1635F?

The GSHS-1635F offers outstanding protection, insulation, and flexibility, making it the preferred choice for engineers, OEM manufacturers, and service technicians seeking a reliable, flame-retardant solution for modern electrical systems.

Ordering & Availability

  • Available in multiple sizes and lengths
  • Offered in reels, spools, or custom-cut sections
  • Technical datasheets and compliance documentation available upon request
  • Bulk and OEM supply options supported
  • Available in different colors

Looking for a professional, flame-retardant heat shrink tubing solution?

Contact Do-X Logistics today to request a quote for GSHS-1635F Heat Shrink Tubing, engineered for performance, protection, and reliability.

Interested in our products?

Leave your details, and we'll get back to you:

Download Datasheet

Heat Shrinkable Flexible Polyolefin (2:1 Shrinkage, 600V, 135℃)

# P/N Product description Package  FT/Spool Manufacturer
1 I-M23053/5-101 GSHS-1635F-3/64″,BK 656 LS Cables & Systems
2 I-M23053/5-102 GSHS-1635F-1/16 “,BK 656 LS Cables & Systems
3 I-M23053/5-103 GSHS-1635F-3/32″,BK 656 LS Cables & Systems
4 I-M23053/5-104 GSHS-1635F-1/8″,BK 656 LS Cables & Systems
5 I-M23053/5-105 GSHS-1635F-3/16″,BK 328 LS Cables & Systems
6 I-M23053/5-106 GSHS-1635F-1/4″,BK 328 LS Cables & Systems
7 I-M23053/5-107 GSHS-1635F-3/8″,BK 164 LS Cables & Systems
8 I-M23053/5-108 GSHS-1635F-1/2″,BK 164 LS Cables & Systems
9 I-M23053/5-109 GSHS-1635F-3/4″,BK 164 LS Cables & Systems
10 I-M23053/5-110 GSHS-1635F-1″,BK 164 LS Cables & Systems
11 I-M23053/5-111 GSHS-1635F-1-1/2″,BK 101 LS Cables & Systems
12 I-M23053/5-202-C GSHS-1635F-1/16″,Cl 656 LS Cables & Systems
13 I-M23053/5-203-C GSHS-1635F-3/32″,Cl 656 LS Cables & Systems
14 I-M23053/5-204-C GSHS-1635F-1/8″,Cl 656 LS Cables & Systems
15 I-M23053/5-205-C GSHS-1635F-3/16 “,Cl 328 LS Cables & Systems
16 I-M23053/5-206-C GSHS-1635F-1/4″,Cl 328 LS Cables & Systems
17 I-M23053/5-207-C GSHS-1635F-3/8″,Cl 164 LS Cables & Systems
18 I-M23053/5-208-C GSHS-1635F-1/2″,Cl 164 LS Cables & Systems
19 I-M23053/5-209-C GSHS-1635F-3/4″,Cl 164 LS Cables & Systems
20 I-M23053/5-210-C GSHS-1635F-1″,Cl 164 LS Cables & Systems
21 I-M23053/5-211-C GSHS-1635F-1 1/2″,Cl 101 LS Cables & Systems
