LGM22759/45

Military Hook-Up Wire

The LGM22759/45 Military Hook-Up Wire is engineered to meet the high demands of airframe, avionics, and aerospace systems. It employs a single layer of irradiation cross-linked extruded ETFE insulation, offering excellent thermal endurance, flame resistance, and chemical stability.

With a lightweight but mechanically tough construction, this wire is optimized for applications where weight, durability, and reliability are all critical. It handles extreme temperatures from -65 °C to 300 °C, and is designed to resist fuels, lubricating oils, and harsh cleaning fluids.

LGM22759/45

Key Features & Benefits

  • Wide Temperature Range: Capable of operation from -65 °C cold bend to exposure at 300 °C for up to 7 hours
  • Voltage Rating: 600 V  suitable for aerospace and military circuits
  • Single-Layer Cross-Linked ETFE: Durable insulation that resists flame, abrasion, and chemical exposure
  • Lightweight Construction: Ideal where mass and space constraints matter
  • Chemical Resistance: Performs under exposure to fuels, lubricants, cleaning agents, and high-pH fluids
  • Mechanical Toughness: Built to withstand physical stresses and environmental extremes

Applications

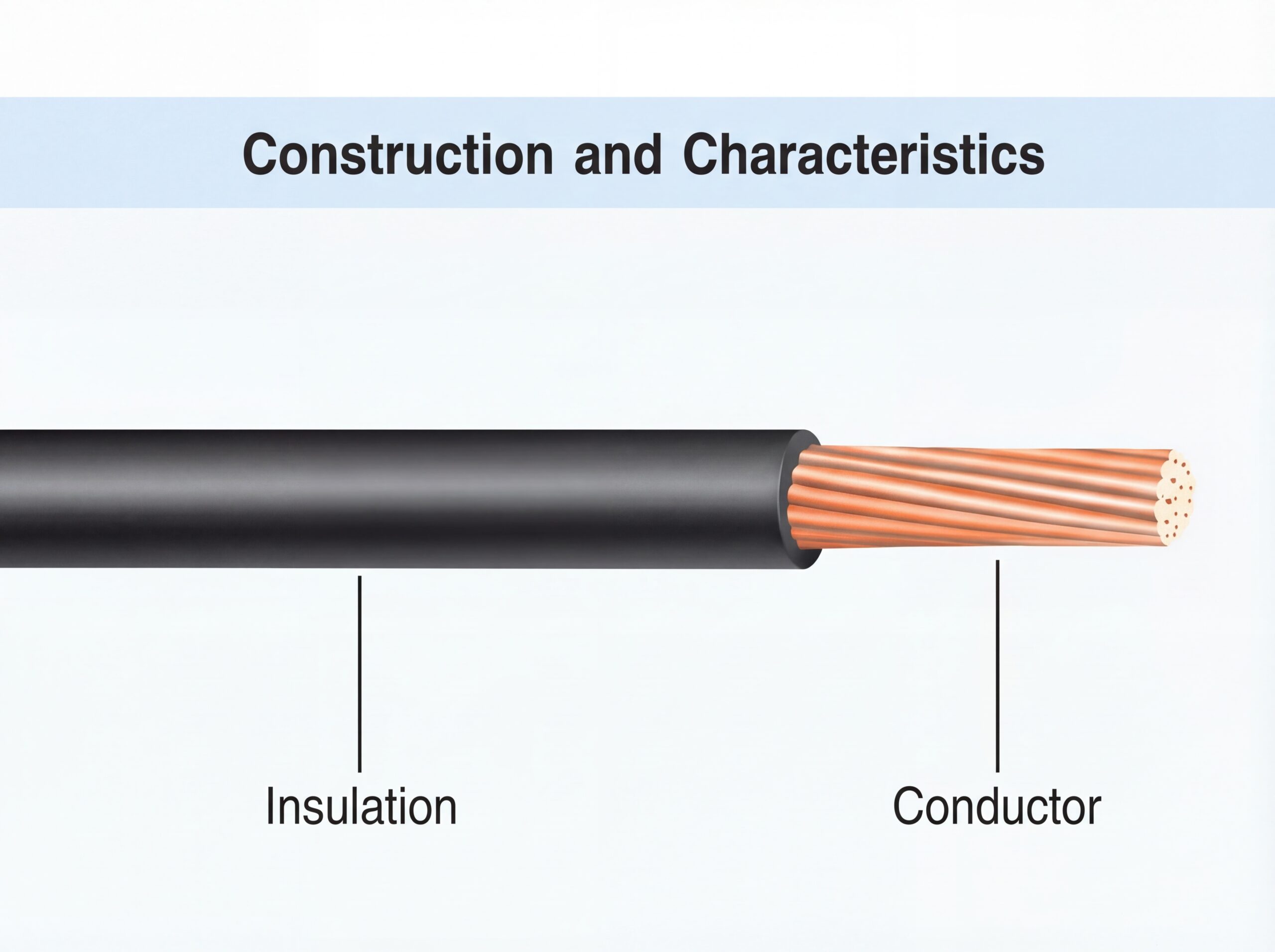

Technical Specifications

  • Conductor: Soft annealed, nickel-plated copper
  • Insulation: Single wall, irradiation cross-linked extruded ETFE
  • Temperature Rating: -65 °C cold bend through 300 °C thermal exposure
  • Voltage Rating: 600 V
  • Gauge Range: (To be specified per order, various AWG sizes)
  • Mechanical & Chemical Performance: High resistance to abrasion, fuels, oils, and cleaning chemicals

Why Choose LGM22759/45?

  • Full MIL-Spec compliance for aerospace & defense
  • Exceptional insulation performance under extreme thermal and chemical stresses
  • Lightweight design reduces the weight burden without sacrificing reliability
  • Engineered for mission-critical use with traceability and certification

Ordering & Availability

  • Offered in spools, reels, or cut lengths
  • Standard and custom insulation colors and striping available
  • Electrical test data, certifications, and lot traceability provided
  • Custom orders accepted for unique gauge, insulation, or packaging requirements
