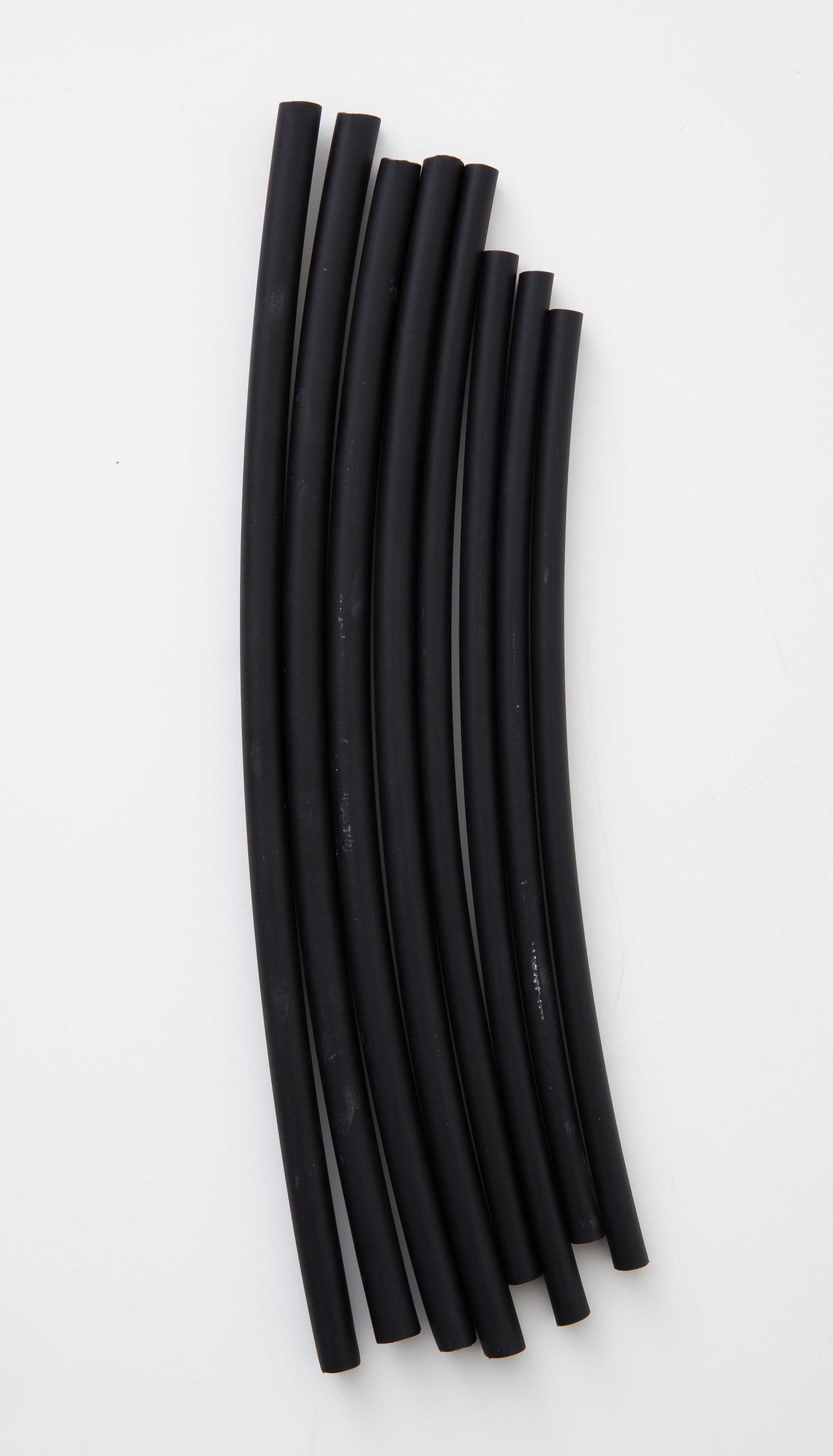

LG-CRFR

Heat Shrink Tubing

The LG-CRFR is a flexible, flame-retardant neoprene heat-shrink tubing that provides reliable insulation, strain relief, and mechanical protection for electrical wiring. With a 2:1 shrink ratio, it is ideal for use in aerospace, transportation, and industrial applications that require durability, safety, and long-term performance.

Standards

  • AMS-DTL-23053/1 Class 1 & 2 standards
  • QPL Approved
LG-CRFR

Key Features & Benefits

  • Flame-retardant neoprene construction for enhanced safety and compliance.
  • 2:1 shrink ratio ensures a tight, professional fit over cables and connectors.
  • Wide operating temperature range from -75 °C to +120 °C for versatile use.
  • Rated up to 600 V, suitable for a variety of electrical applications.
  • Flexible and durable, providing both mechanical and environmental protection.

Material & Options

  • Material: Flame-retardant neoprene heat-shrink tubing.
  • Shrink Ratio: 2:1.
  • Temperature Range: -75 °C to +120 °C.
  • Voltage Rating: Up to 600 V.
  • Color: Standard black; custom colors available on request.
  • Packaging: Available in reels, spools, or custom cut lengths.

Why Choose LG-CRFR?

Engineered for professional performance, the LG-CRFR Heat Shrink Tubing combines flame resistance, flexibility, and durability. It ensures long-term insulation and protection for cables and wiring in harsh or safety-critical environments.

Ordering & Availability

  • Offered in multiple diameters and lengths.
  • Available in standard reels or custom cut lengths.
  • Technical datasheets and certification documents are available upon request.
  • Suitable for OEM production, maintenance, and repair applications.

Ensure maximum protection and compliance with LG-CRFR Heat Shrink Tubing, the professional solution for safe, long-lasting insulation.

Contact Do-X Logistics today to request a quote or technical specifications.

Interested in our products?

Leave your details, and we'll get back to you:

Download Datasheet

LG-CRFR Heat Shrinkable Chlorinated Polyolefin Tubing Specifications

Do-X P/N

Standard Size

(Inch size)

Expanded

Min. Inside Diameter [mm]

Expanded

Max. Inside Diameter [mm]

Recovered

Min. Thick. At any point [mm]

Standard Length [m]

M23053/8-001

1/8

3.20

1.60

0.70

200

M23053/8-002

3/16

4.80

2.40

0.75

100

M23053/8-003

1/4

6.35

3.63

0.64

100

M23053/8-004

3/8

9.53

5.36

0.76

50

M23053/8-005

1/2

12.70

7.26

0.83

50

M23053/8-006

5/8

15.88

9.07

0.94

50

M23053/8-007

3/4

19.05

10.87

1.06

50

M23053/8-008

7/8

22.23

12.70

1.14

50

M23053/8-009

1

25.40

14.48

1.26

50

M23053/8-010

1-1/4

31.75

18.14

1.69

31

M23053/8-011

1.5

38.10

21.77

1.90

31

M23053/8-012

2

50.80

29.0

2.29

31
– : Customized size, which is not in SAE-AMS-DTL 23053/1 Specification.
