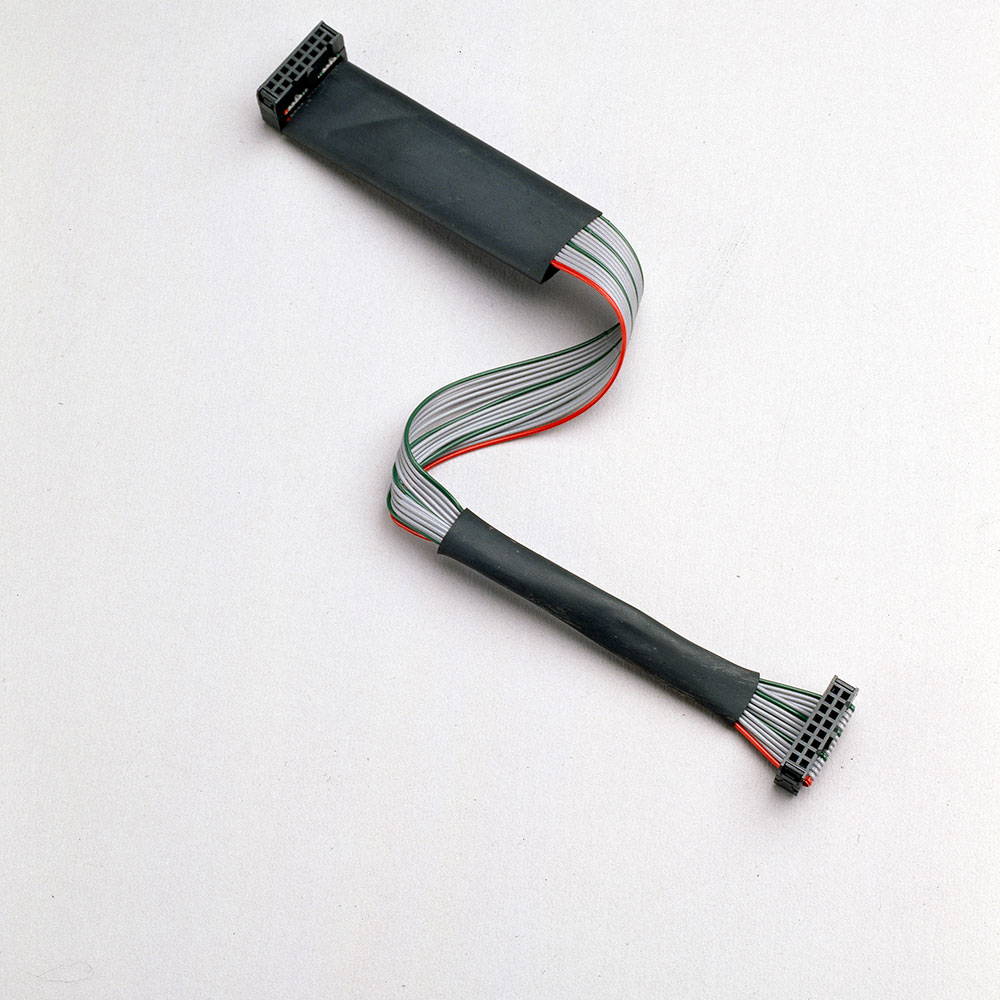

GSHS-3635W

Heat Shrink Tubing

The GSHS-3635W is a dual-wall, flame-retardant polyolefin heat shrink tubing designed for superior electrical insulation and environmental sealing. With a 3:1 shrink ratio and an adhesive-lined interior, it provides a tight, durable, and moisture-resistant seal around wires, splices, and connectors. Engineered for high-performance industrial, automotive, and aerospace applications, this tubing ensures lasting protection in the most demanding conditions.

Standards

  • UL 224
  • AS 23053/4 Class III standards
  • QPL approved
GSHS-3635W

Key Features & Benefits

  • 3:1 Shrink Ratio: Fits securely over connectors, terminals, and cable bundles.
  • Dual-Wall Design: Adhesive-lined inner layer ensures a watertight and dustproof seal.
  • Flame-Retardant Polyolefin: Meets stringent safety and insulation standards.
  • Temperature Range: Operates reliably from -55 °C to +135 °C.
  • Mechanical Durability: Resistant to abrasion, vibration, and environmental stress.
  • Clean, Professional Finish: Ensures reliable protection and a neat, finished appearance.

Material & Options

  • Material: Cross-linked polyolefin, dual-wall (adhesive-lined)
  • Shrink Ratio: 3:1
  • Operating Temperature: -55 °C to +135 °C
  • Colors: Standard black (custom colors available)
  • Packaging: Available in reels, sticks, or pre-cut lengths
  • Sizes: Multiple diameters to fit a wide range of wire and cable sizes

Why Choose GSHS-3635W?

The GSHS-3635W Heat Shrink Tubing combines strong insulation, superior sealing, and mechanical protection in one versatile product. Its dual-wall adhesive lining ensures long-term moisture resistance, while the flame-retardant outer layer provides safety and durability in harsh conditions.

Ordering & Availability

  • Available in multiple diameters and lengths
  • Supplied in reels or pre-cut sections
  • Technical datasheets and compliance certificates are available upon request
  • OEM and bulk order options supported
  • The standard colors of insulation are Black, White, Red, Yellow, Blue, Green, Gray, Brown, and Violet

Need high-performance, adhesive-lined heat shrink tubing for your next project?

Contact Do-X Logistics today to request a quote for GSHS-3635W Heat Shrink Tubing, engineered for dependable insulation and sealing in demanding environments.

Interested in our products?

Leave your details, and we'll get back to you:

Download Datasheet

Moisture Proof Heat Shrinkable Flexible Polyolefin (3:1 Shrinkage)

Do-X P/N

Standard Size

(Metric size)

Expanded

Inside Diameter [mm]

Recovered

Max. Inside Diameter [mm]

Recovered

Min. Jacket thickness [mm]

Standard Length [m]

M23053/4-3-1/8

0.53T X 1/8″

3.4 + 0.3

1.00

0.44

1.2

M23053/4-3-3/16

0.48T X 3/16″

5.1 + 0.3

1.50

0.44

1.2

M23053/4-3-1/4

0.45T X 1/4″

6.7 + 0.3

2.00

0.56

1.2

M23053/4-3-3/8

0.50T X 3/8″

9.9 + 0.4

3.00

0.56

1.2

M23053/4-3-1/2

0.50T X 1/2″

13.3 + 0.6

4.20

0.56

1.2

M23053/4-3-3/4

0.77T X 3/4″

20.1 + 1.0

6.00

0.69

1.2

M23053/4-3-1

0.70T X 1″

26.4 + 1.0

8.00

0.69

1.2

M23053/4-3-1-1/2

0.76T X 1.5″

39.0 + 1.0

13.00

0.87

1.2
