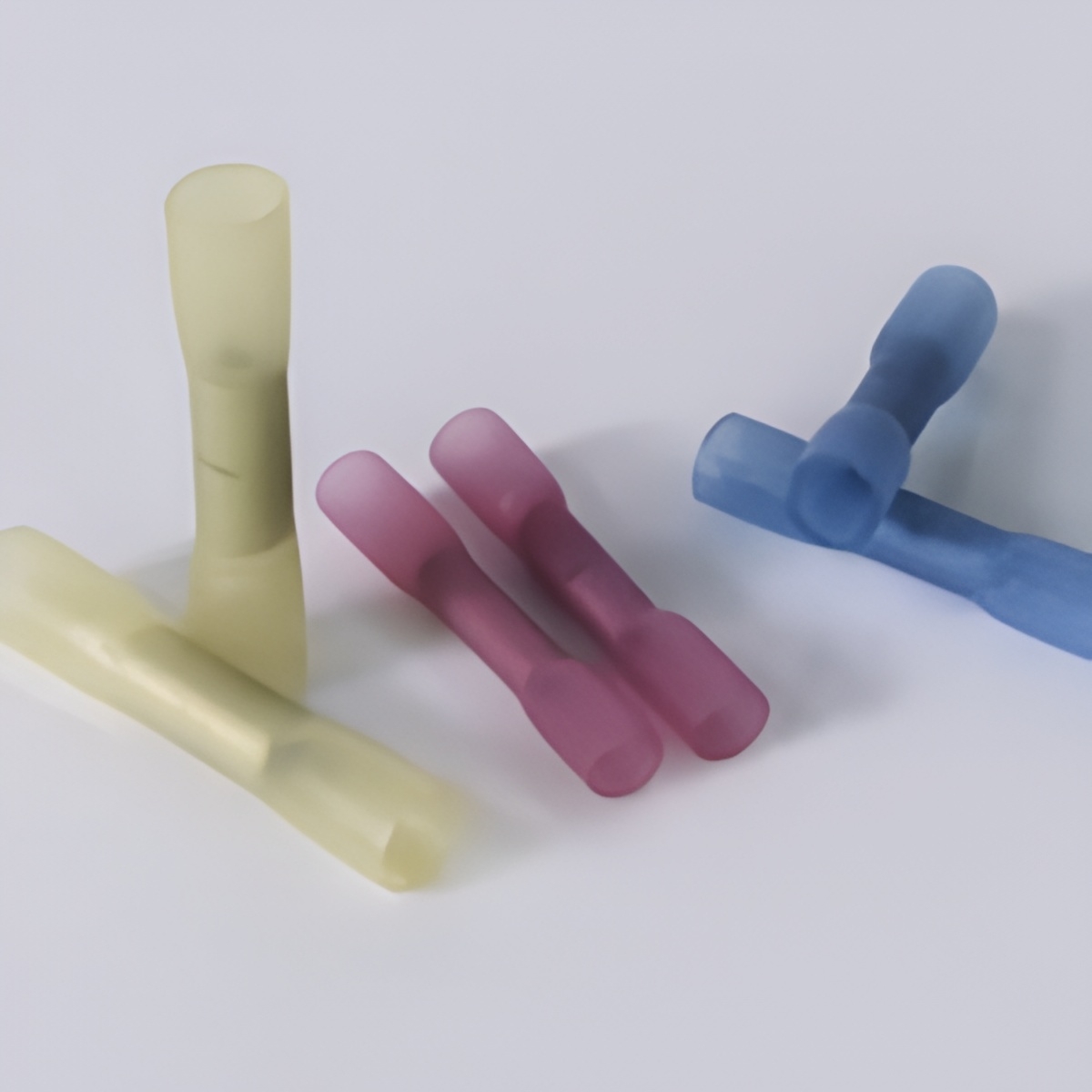

CYG-DS(406)

Heat-Shrink Butt Splice Connector

The CYG-DS(406) is a heat-shrink butt splice connector engineered for secure, sealed, and durable wire connections. Designed with a cross-linked polyolefin outer sleeve and adhesive inner lining, it delivers reliable insulation, strain relief, and environmental sealing, ensuring long-term performance in automotive, marine, and industrial applications.

CYG-DS(406)

Key Features & Benefits

  • 4:1 Shrink Ratio: Ensures a tight, uniform fit around conductors and insulation.
  • Adhesive-Lined Interior: Provides waterproof sealing and corrosion resistance.
  • High Temperature Performance: Operates effectively from -55 °C to +125 °C.
  • Electrical Reliability: Offers strong dielectric strength and insulation integrity.
  • Mechanical Protection: Resists vibration, moisture, and mechanical stress for long-lasting splice protection.

Material & Options

  • Cross-linked polyolefin tubing with heat-activated adhesive liner
  • Multiple sizes available for conductor ranges: 22-18 AWG, 16-14 AWG, 12-10 AWG
  • Color-coded options for easy wire gauge identification
  • Supplied in packs, reels, or bulk for production and field use

Why Choose CYG-DS(406)?

  • Combines sealing, insulation, and strain relief in one simple step
  • Delivers reliable electrical continuity under environmental stress
  • Fast, consistent installation reduces downtime and rework
  • Ideal for both OEM production and field maintenance

Ordering & Availability

  • Available in multiple connector sizes and packaging formats
  • Stock and custom orders supported
  • Datasheets and compliance certifications provided upon request

Seeking a reliable, waterproof, heat-activated splice connector you can trust?

Contact Do-X Logistics today to request a quote for CYG-DS(406) Heat Shrink Butt Splice Connectors, built for durability, protection, and performance in every environment.

Interested in our products?

Leave your details, and we'll get back to you:

Download Datasheet
# P/N Product description NOMINAL SIZE (mm) Color Manufacturer
1 I-CYG-DS(406)-4.7 CYG-DS(406)-4.7 ( 500pcs/bag ) φ4.7 Red KTG
2 I-CYG-DS(406)-5.7 CYG-DS(406)-5.7 ( 500pcs/bag ) φ5.7 Blue KTG
3 I-CYG-DS(406)-6.7 CYG-DS(406)-6.7 ( 500pcs/bag ) φ6.7 Yellow KTG
